48V 12Ah 15AH Ebike Battery Reention Dorado Battery Pack for 750w 500w 1000W motor Charger 18ah15ah Troxus Electric Bike Akku

Description

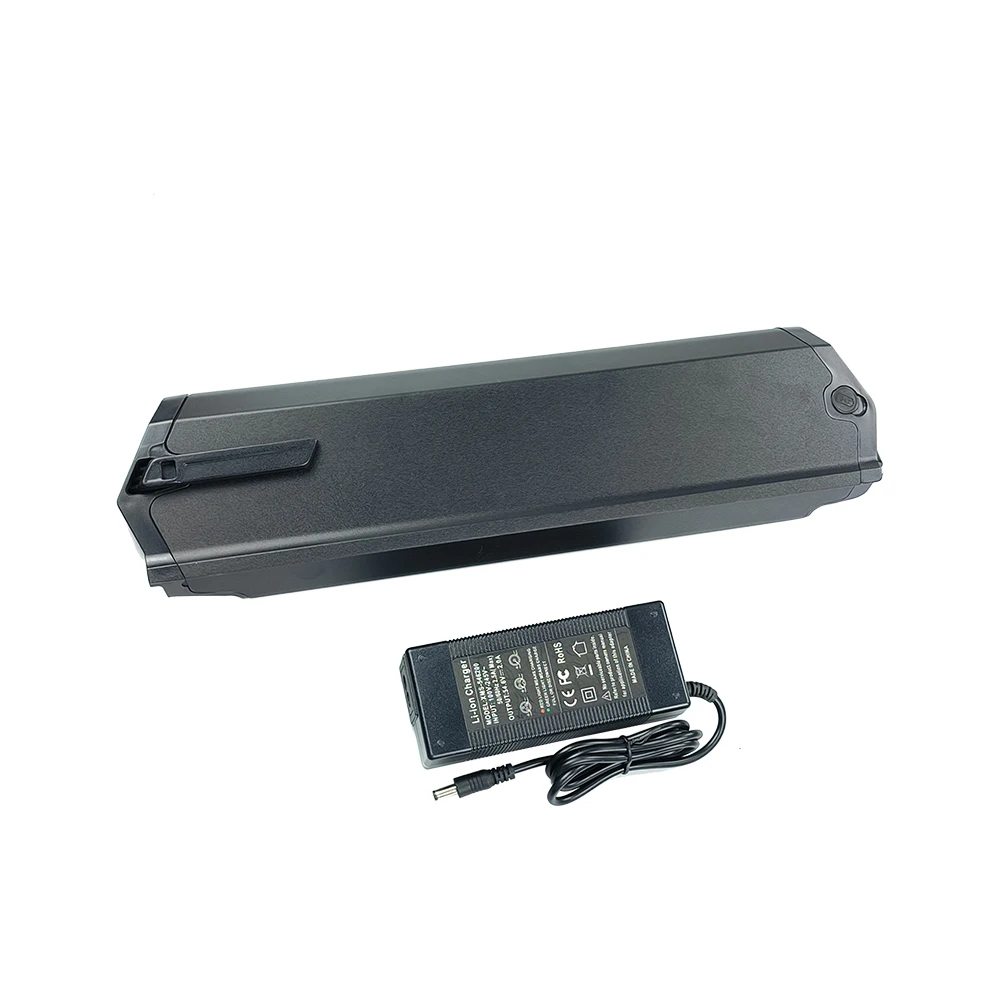

48V 12Ah 15AH Ebike Battery Reention Dorado Battery Pack for 250W 750w 500w 1000W motor +Charger 18ah 15ah Electric Bike Akku

Note:

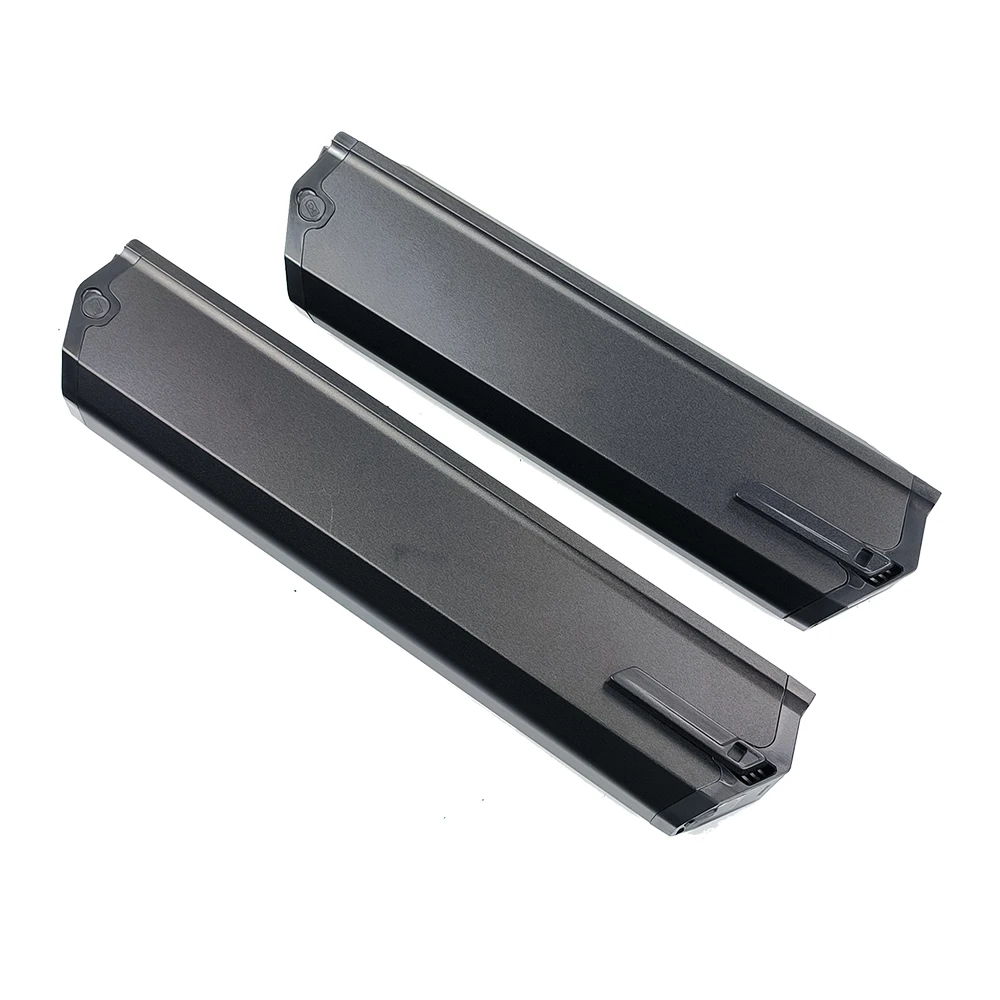

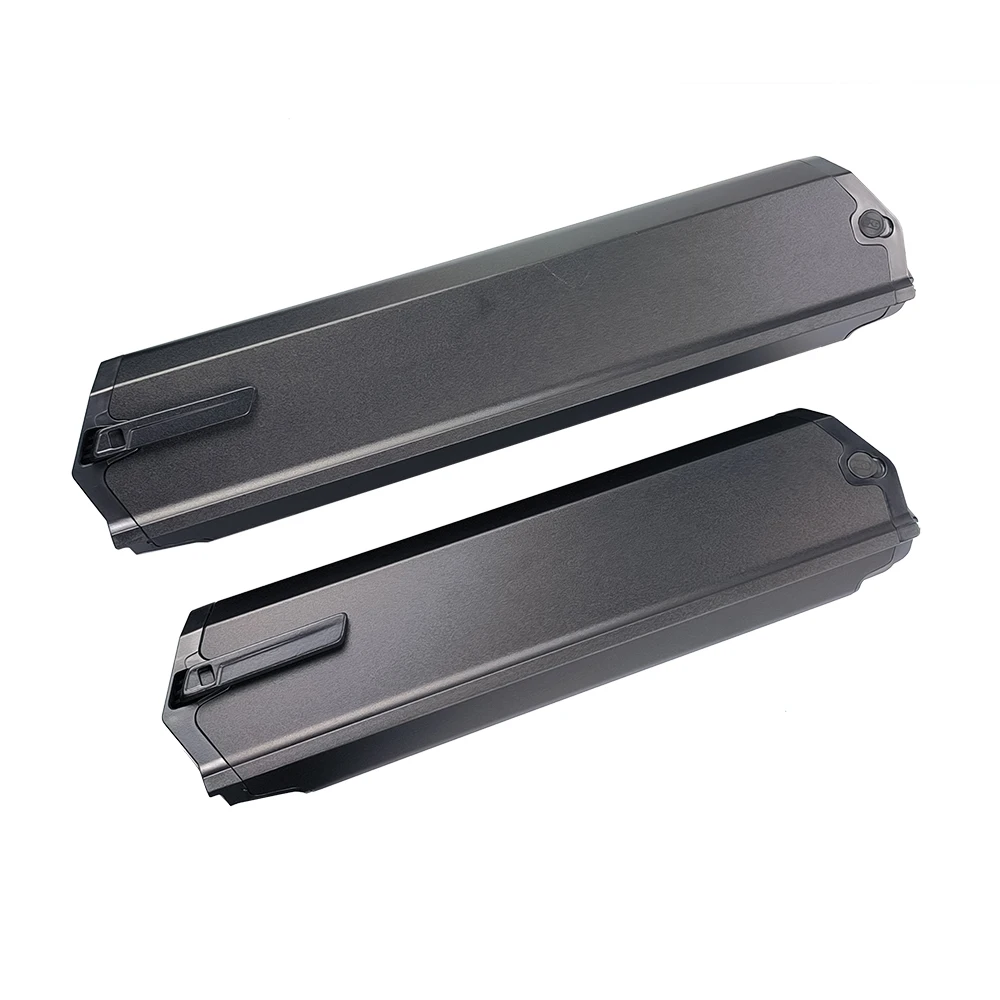

1. In this link, the batteries have two different length. One is 390mm(15.35Inches) long and other one is 458mm(18Inches) long.
When buy a new replacement battery pack, firstly must make sure the battery length is the same. If lenght is different, then they won’t match your ebike. And if want to get higher capacity by new bigger case,sometimes need check if battery case heigth is workable to install for your ebike, Because some bikes frame is lower, when install taller battery, there is no enough up space.

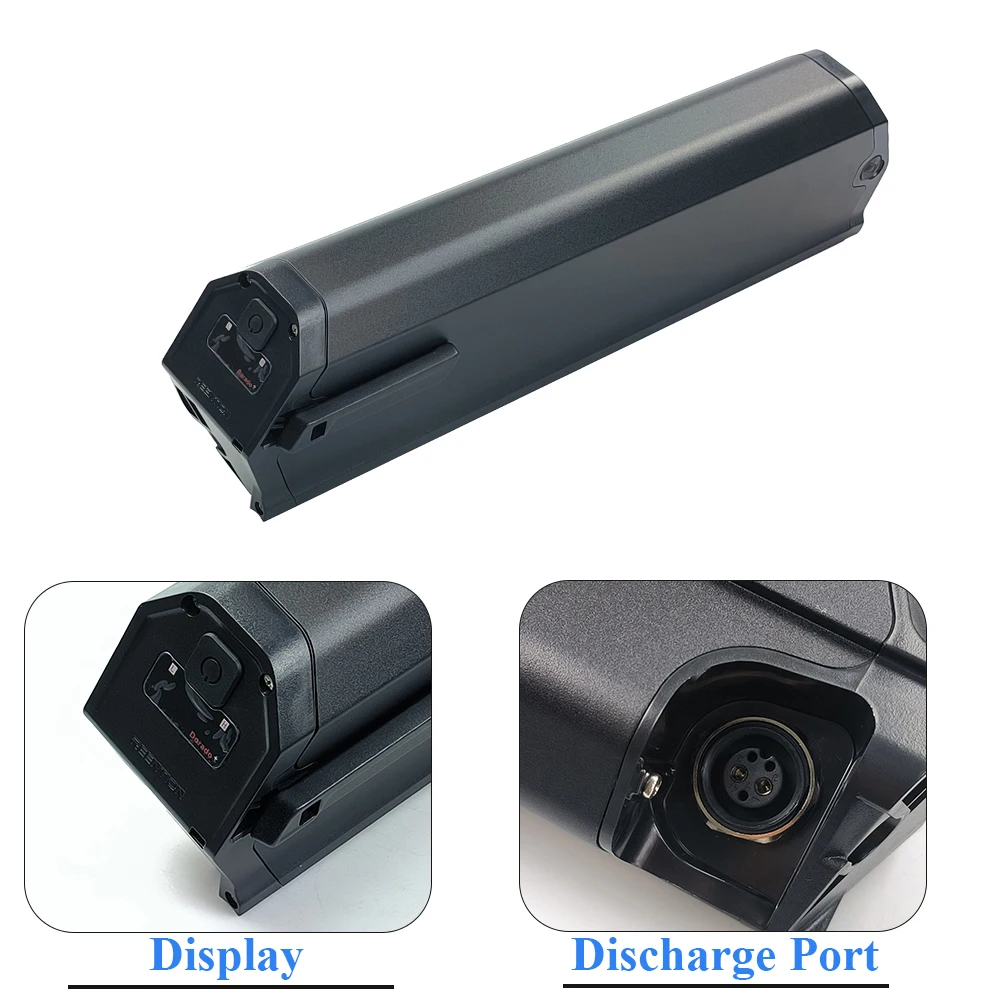

2. Output connector for all these batteries only fit 2pins male connector in ebike frame as showed in below picture. Please pay attention, some ebike batteries come with a 6Pins connector, you can check the male connector on your ebike. If need 6pins, please leave message after an order.

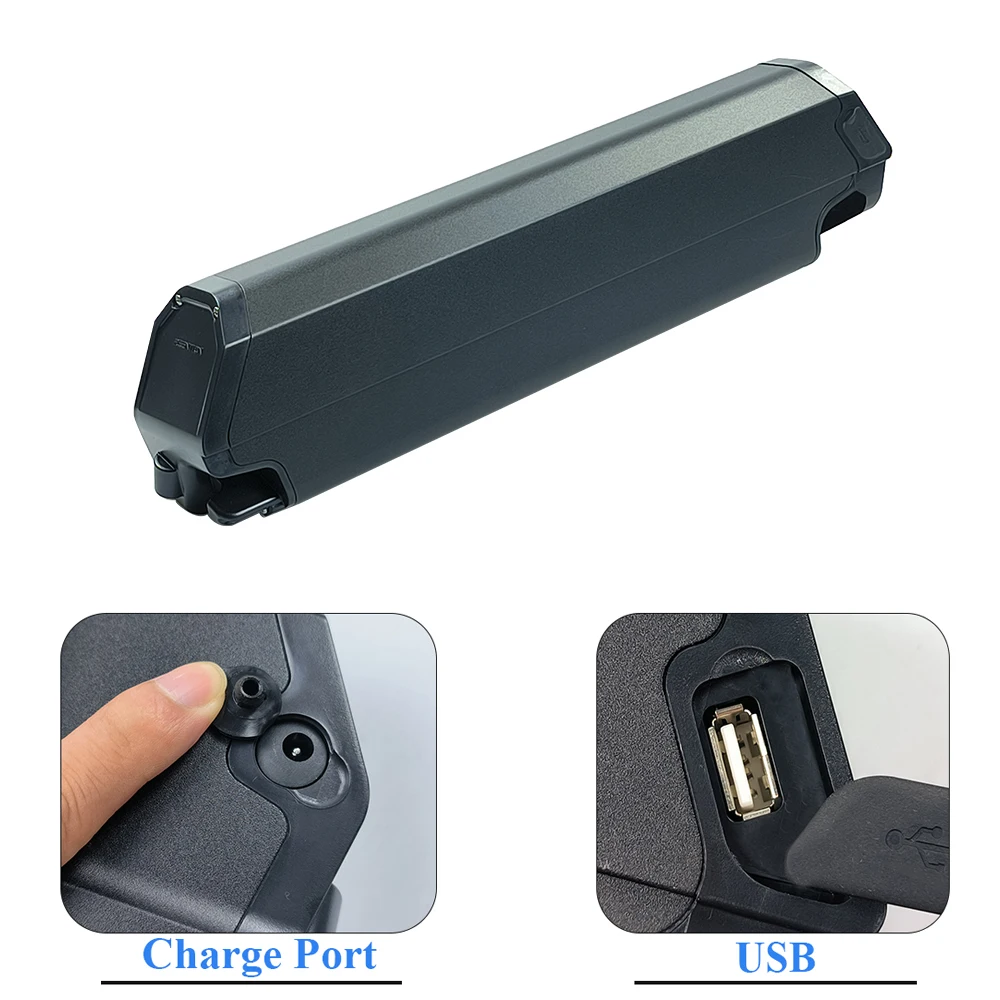

Charge connector is2.1mm DCmodel.

Shopping Tips for EU Customers， read carefully:

1. The price you see is VAT included, we will pay the taxes .

2. Your actual payment amount will be about 19%-30% lower than the displayed

Parameters:

Battery Type: Dorado ID-Plus ebike Lithium Battery
Rated Voltage:36V/48V
Rated Capacity:10-18Ah
Cell model:18650 2600mah /3000mah powerful cells

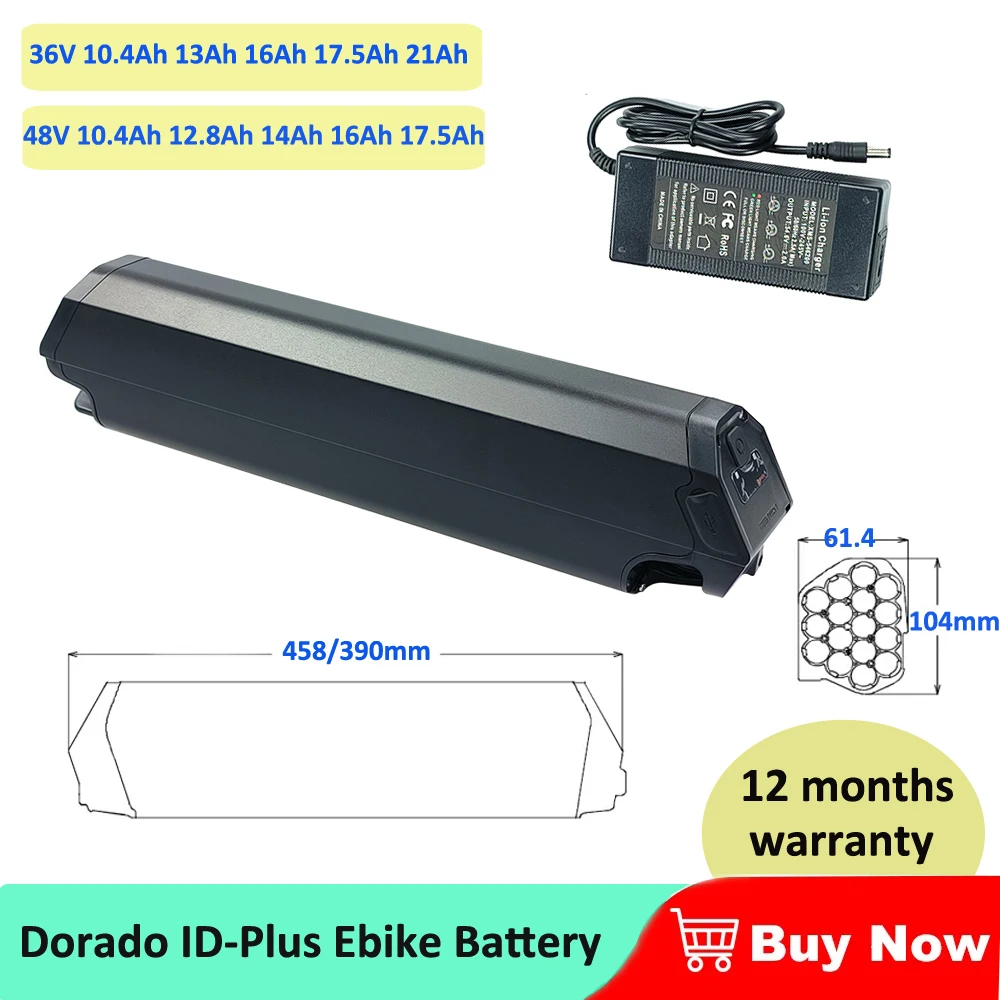

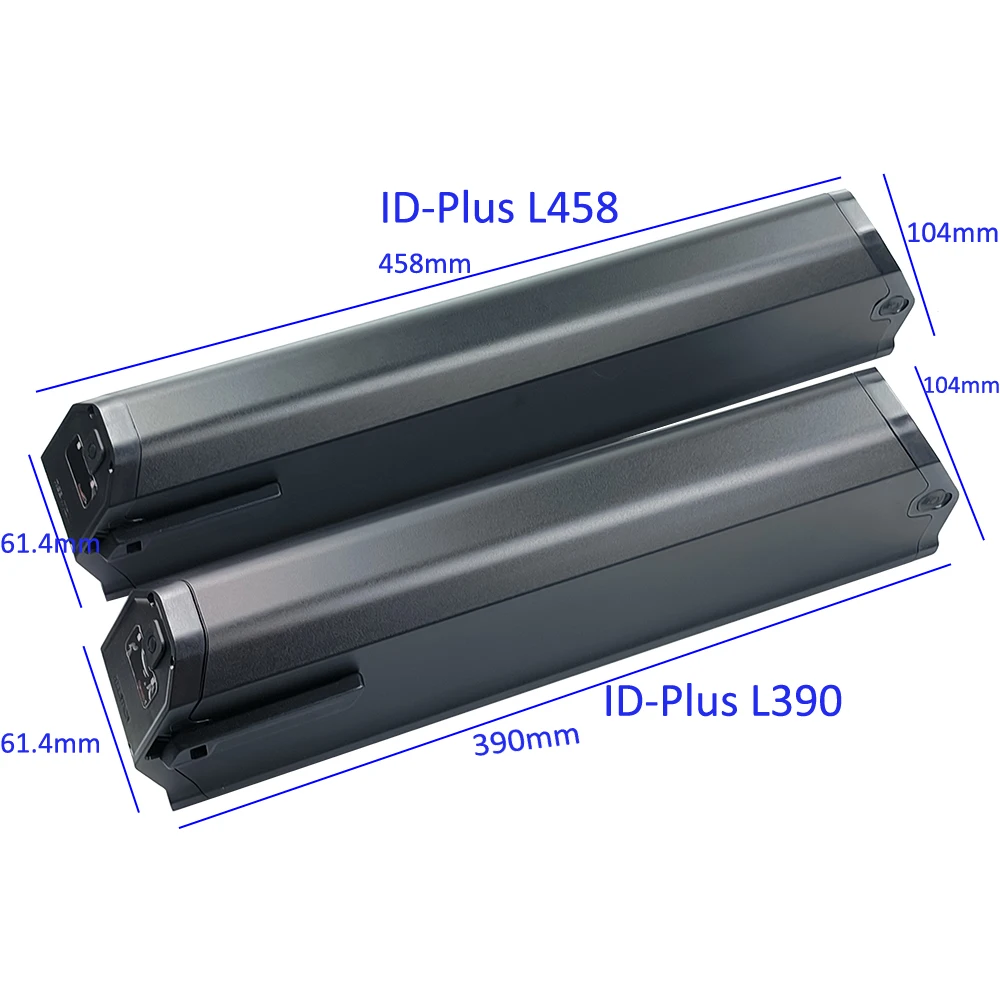

Battery Size:

Pro-390:  390*61.4*84.3mm

Pro-458:  458*61.4*84.3mm

Plus-390:  390*61.4*104mm

Plus-458:  458*61.4*104mm

Max-390:  390*80*104mm

Max-458:  458*80*104mm

217-390:  390*84*109mm

217-458:  458*84*109mm
Shell Material:ABS+Aluminium alloy
Recommend to motoe power:250W/350W/500W/750W/1000W
Battery Charge Voltage:54.6V/58.8V
Discharge cut-off voltage:39V/42V
BMS function:Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection
