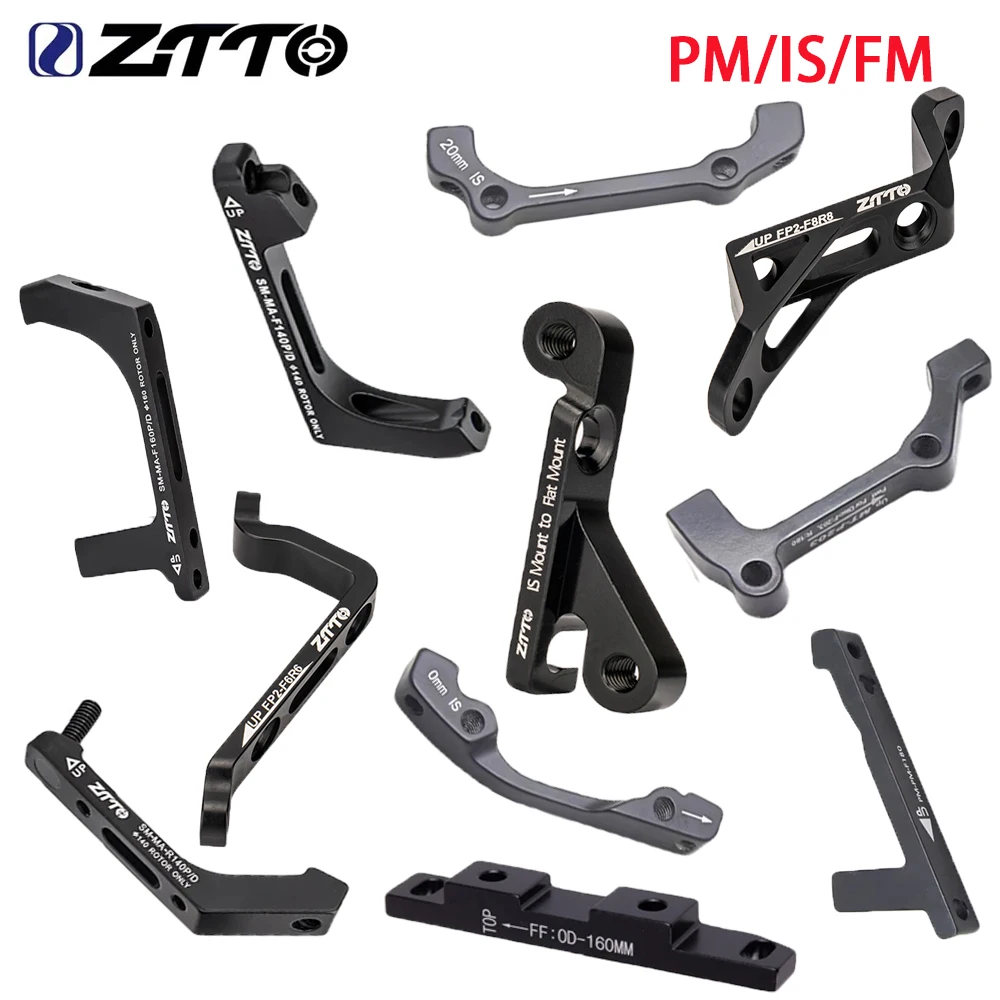

ZTTO Bike Disc Brake Converter For 140 160 180 203mm Brake Rotor Bracket PM FM To PM Disc Brake Mount IS to Flat Mount Adapter

ZTTO MTB Road Bike Disc Brake Adapter

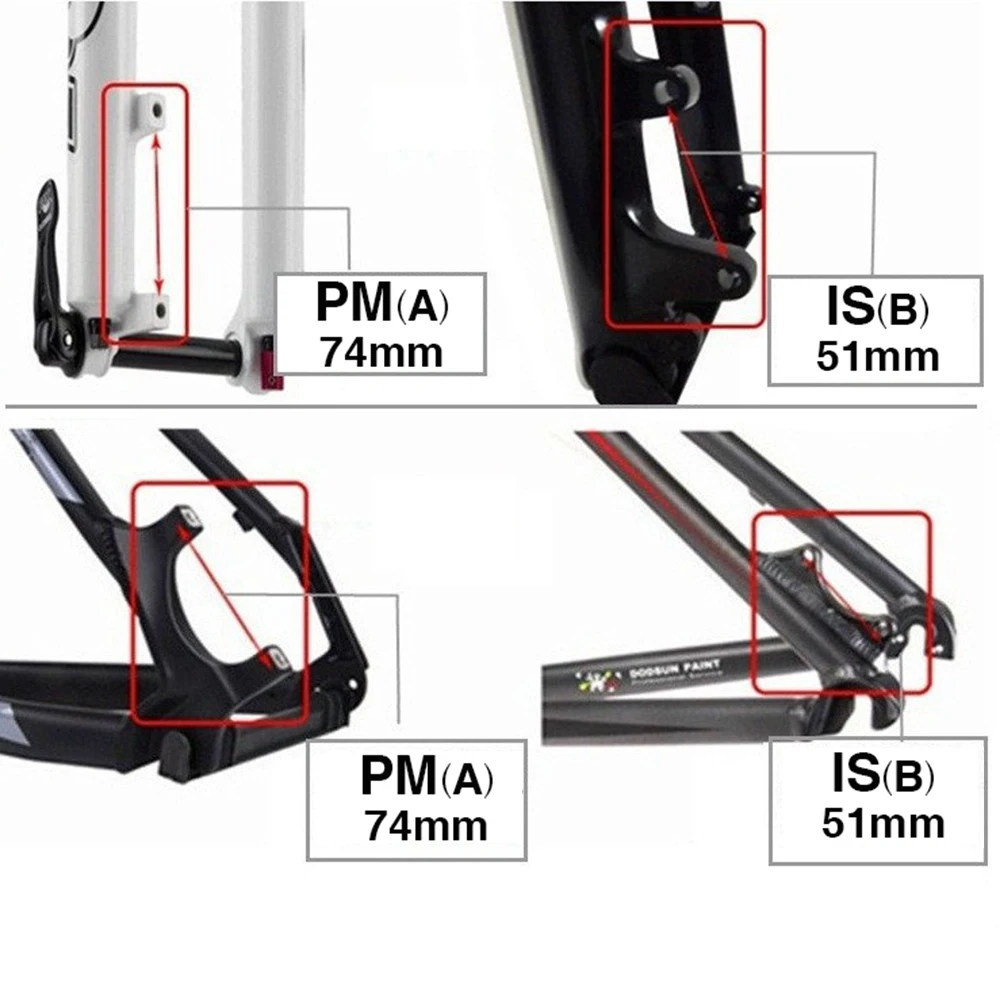

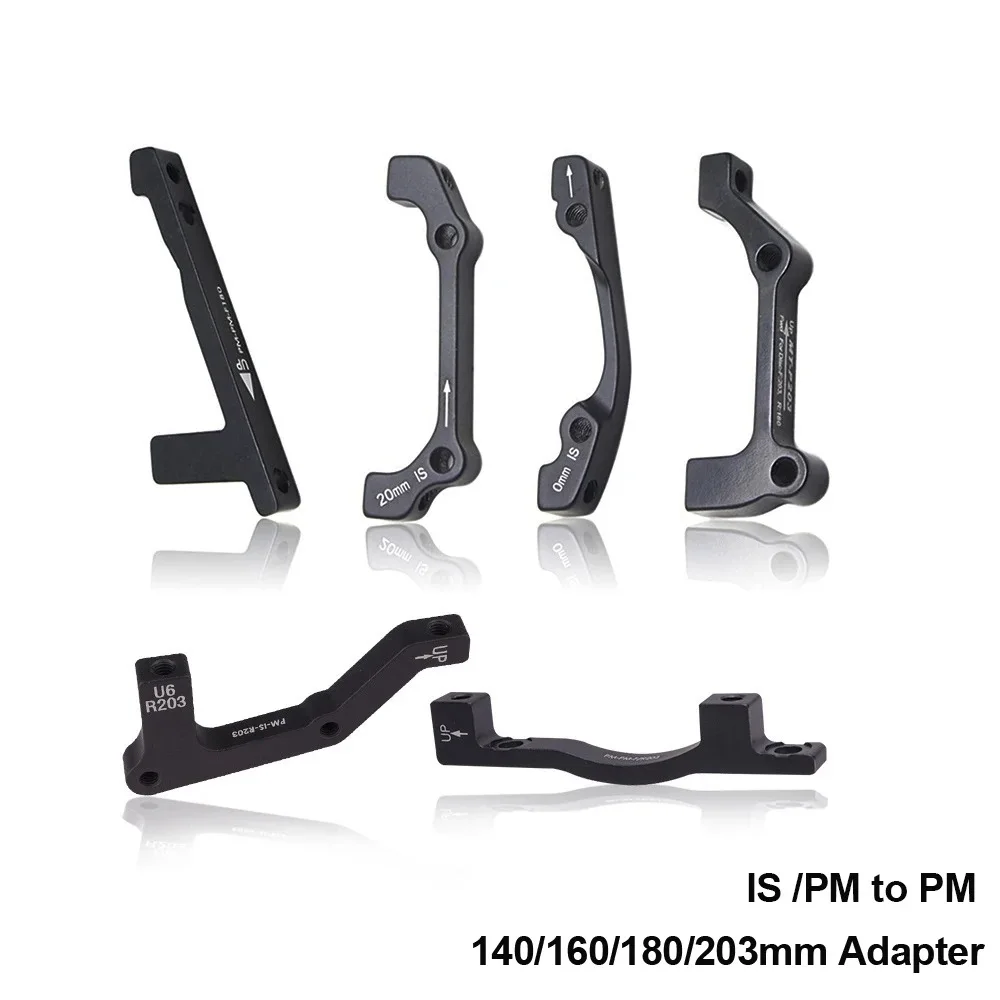

IS/PM to Post Mount

DS01

Front & Rear wheel: PM to PM,Use 180mm disc brake rotor

DS02

Front Wheel: IS to PM,Use 203mm disc brake rotor
Rear Wheel: IS to PM,Use 180mm disc brake rotor

DS05

Front Wheel: IS to PM,Use 160mm disc brake rotor
Rear Wheel: IS to PM,Use 140mm disc brake rotor

DS06

Front Wheel: IS to PM,Use 180mm disc brake rotor
Rear Wheel: IS to PM,Use 160mm disc brake rotor

DS07

Front Wheel&Rear Wheel:PM to PM,Use 203mm disc brake rotor

DS08

Rear Wheel:IS to PM,Use 203mm disc brake rotor

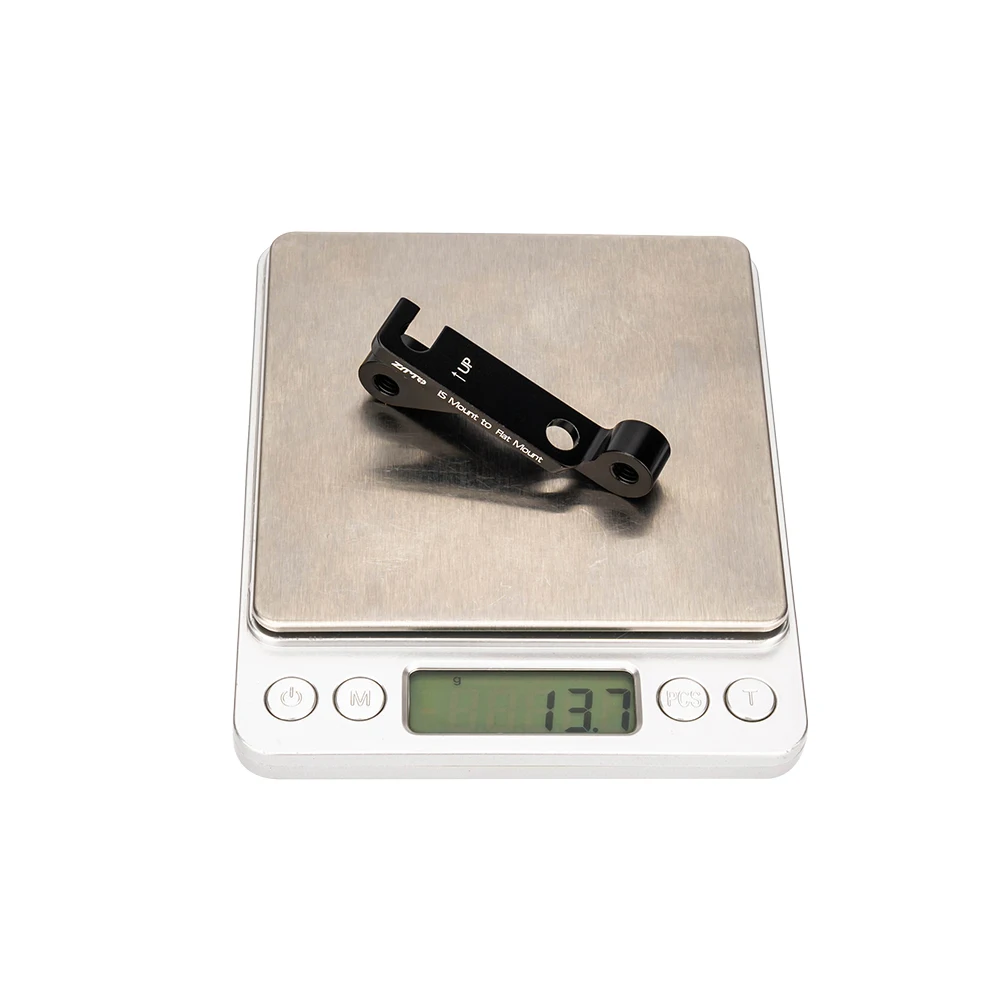

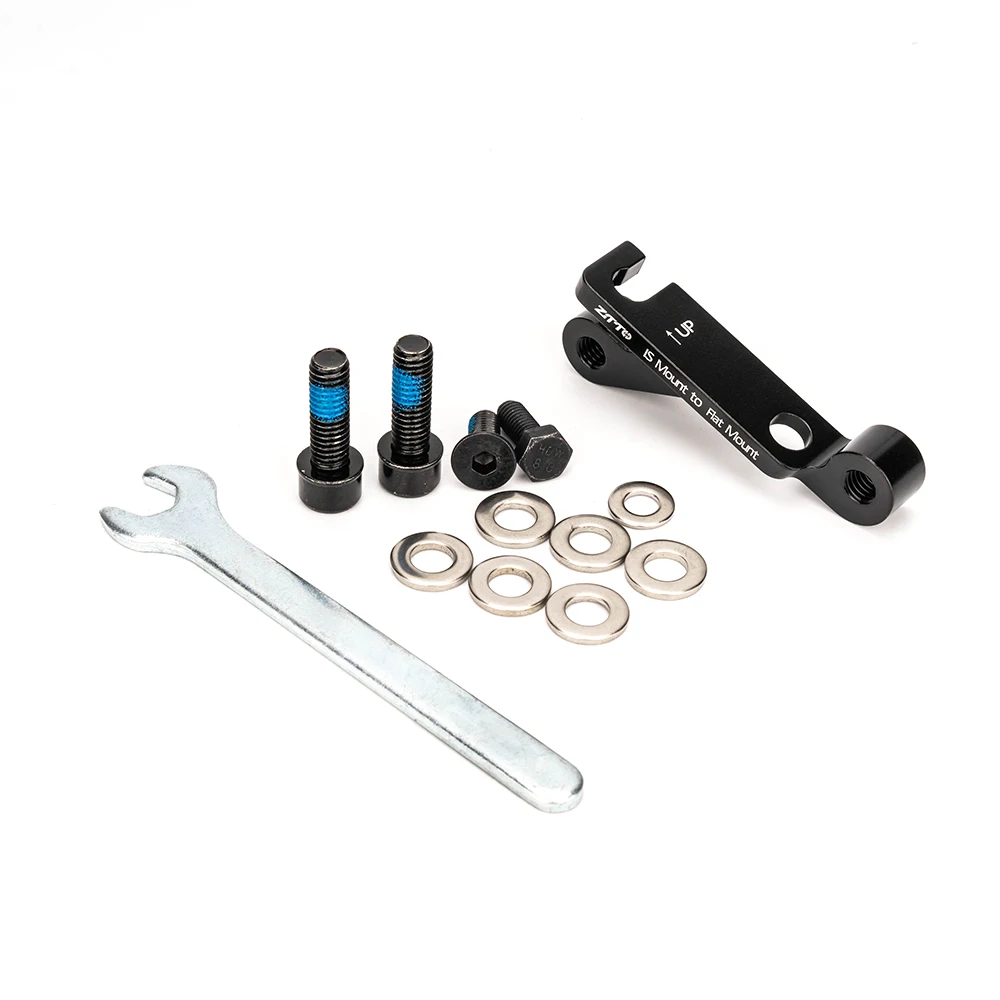

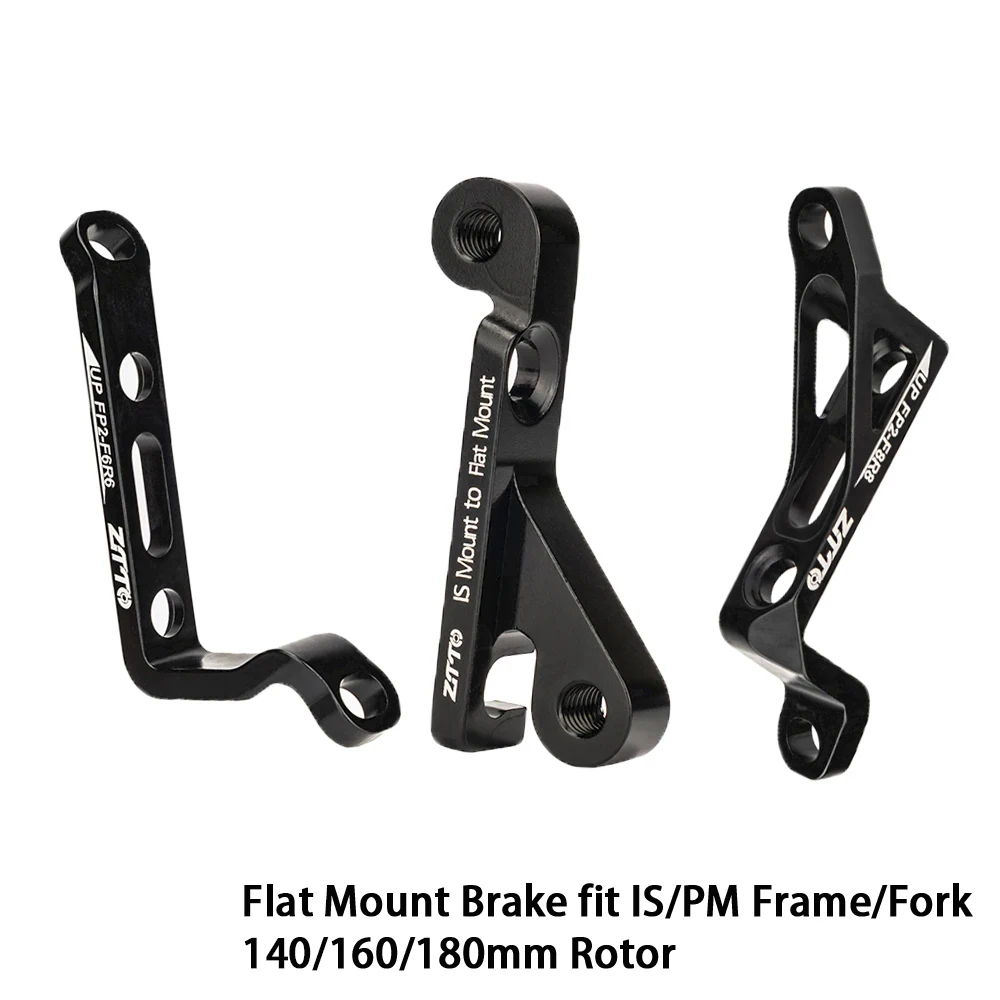

PM/IS To FM

F5R5:

Add 0mm for IS mount frame/fork

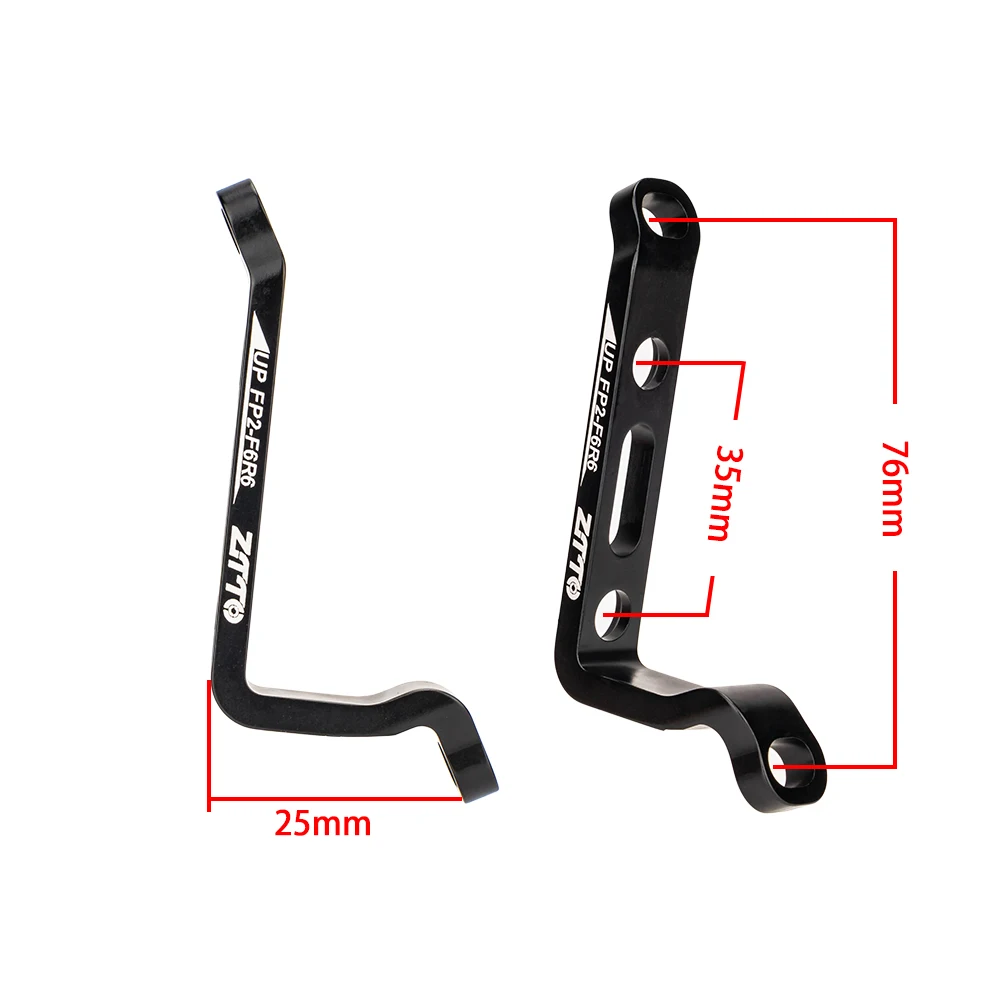

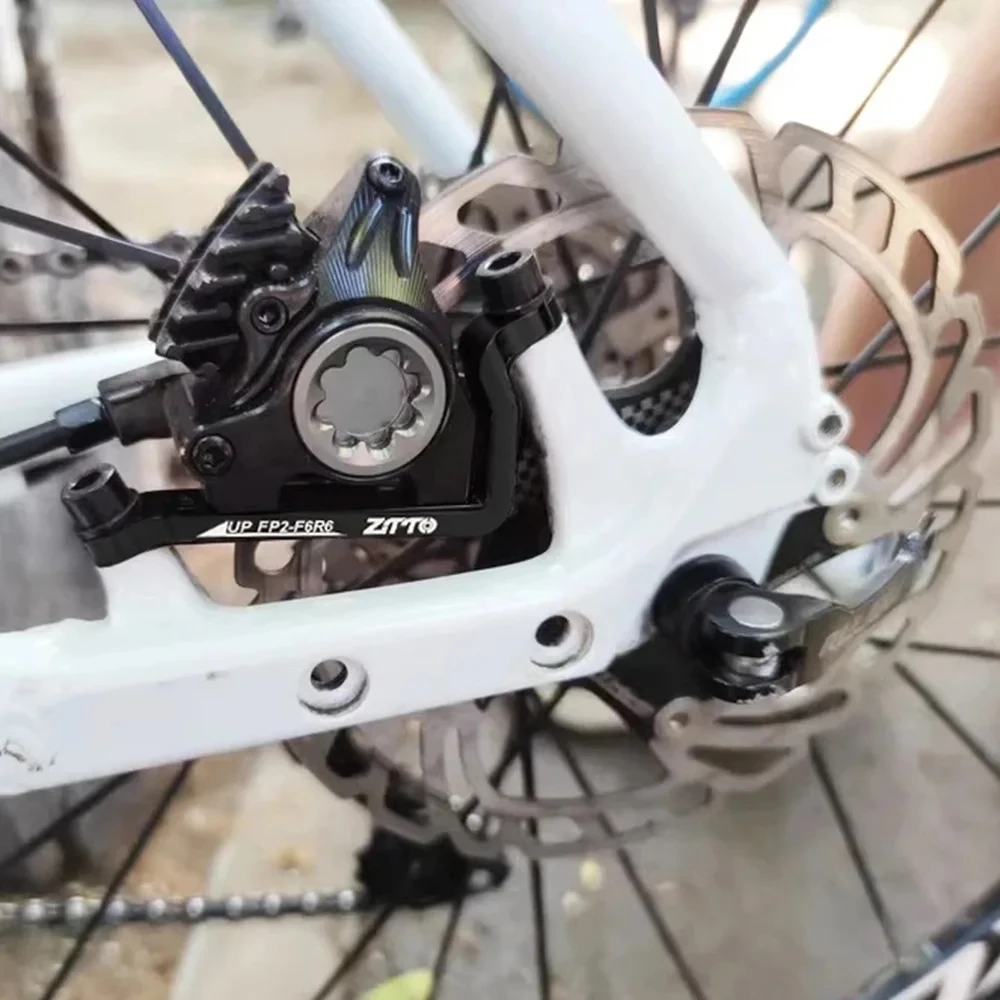

F6R6:

For 140mm post mount frame/fork use 140mm brake rotor
For 160mm post mount frame/fork use 160mm brake rotor

F8R8:

For 140mm post mount frame/fork use 160mm brake rotor.
For 160mm post mount frame/fork use 180mm brake rotor

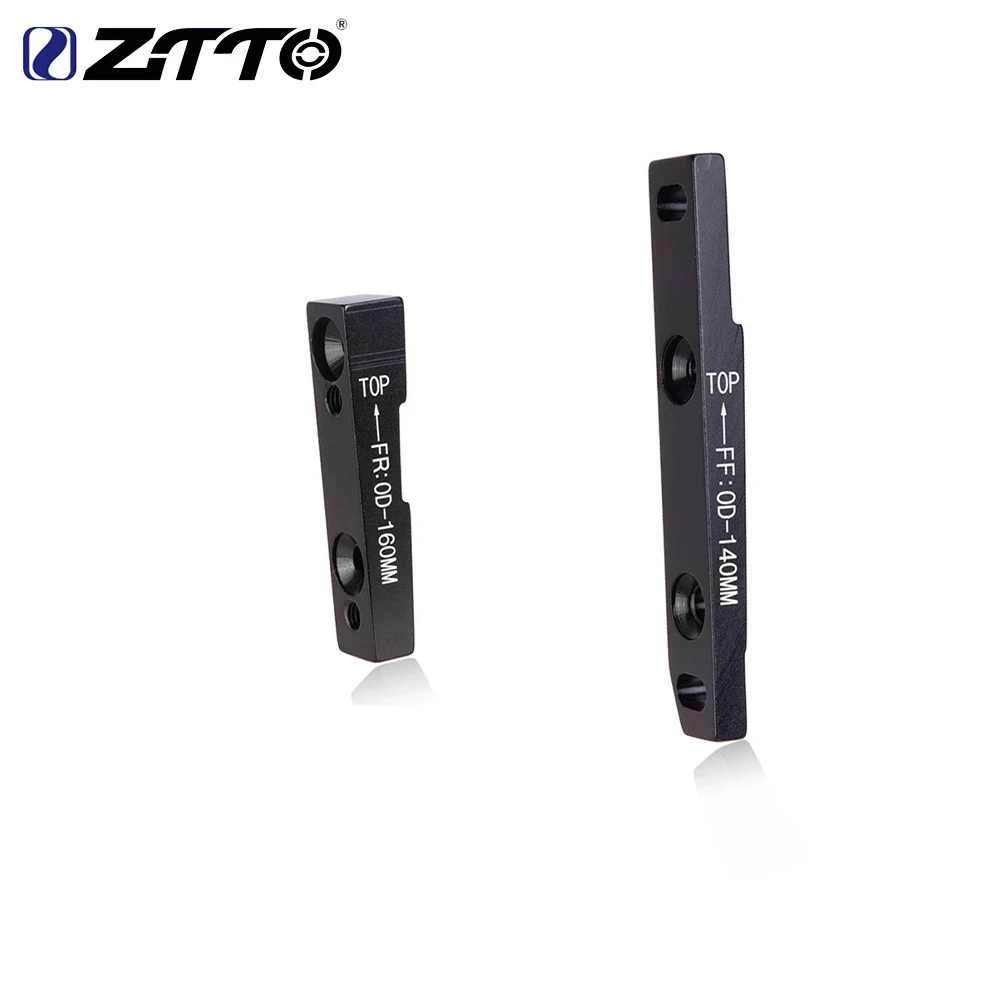

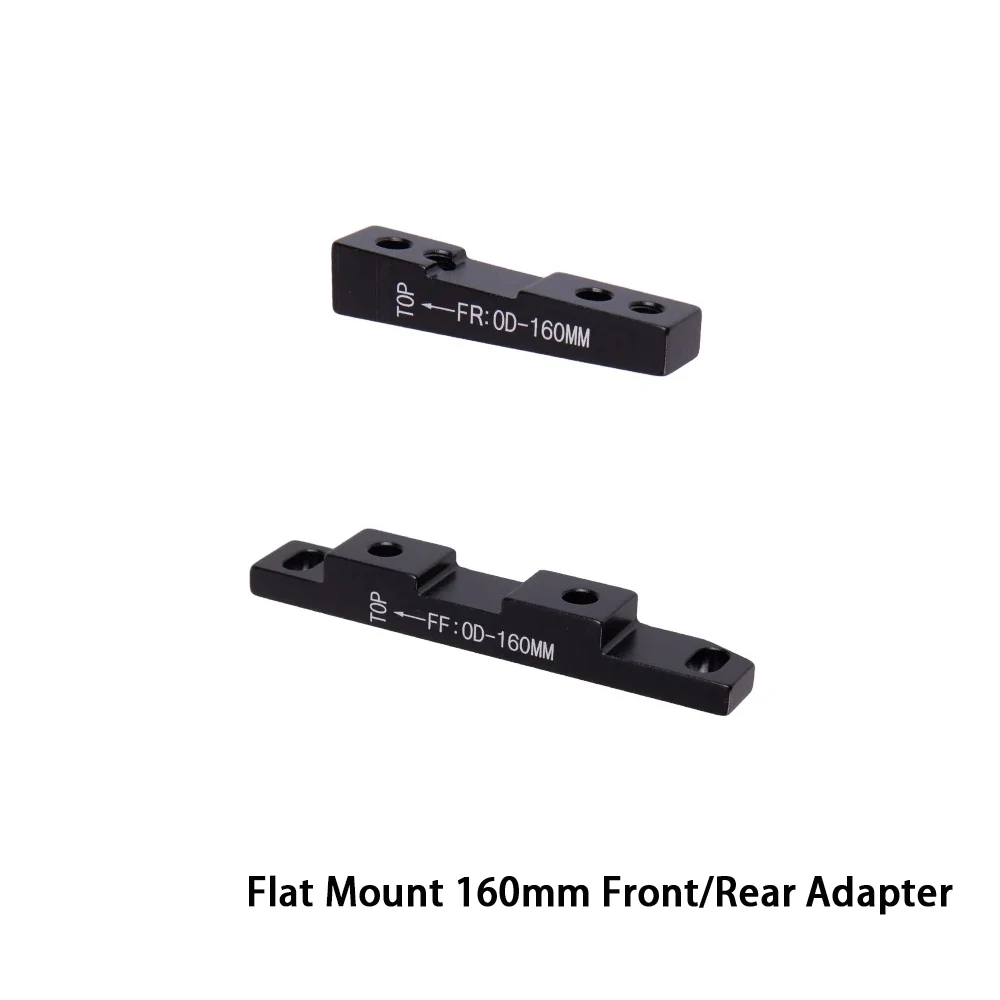

FF160

Front Wheel,Use 160mm disc brake rotor

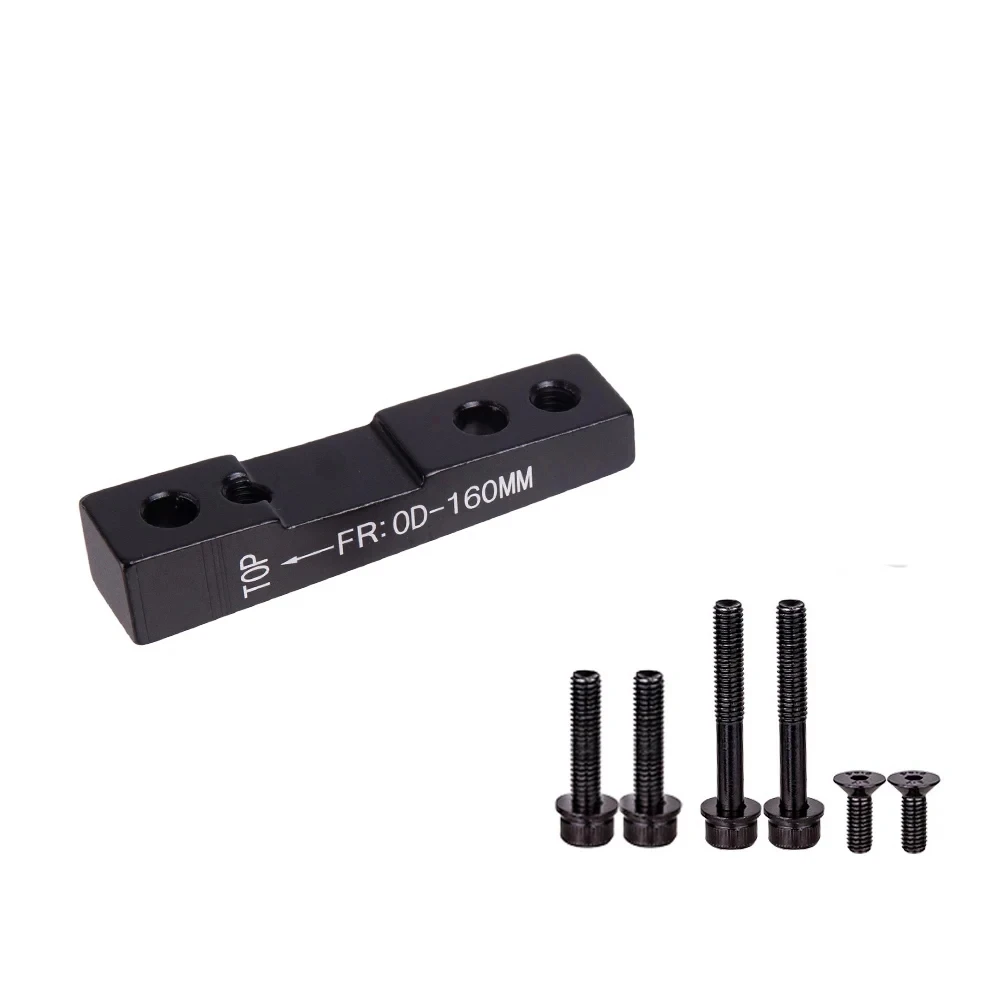

FR160

Rear Wheel,Use 160mm disc brake rotor

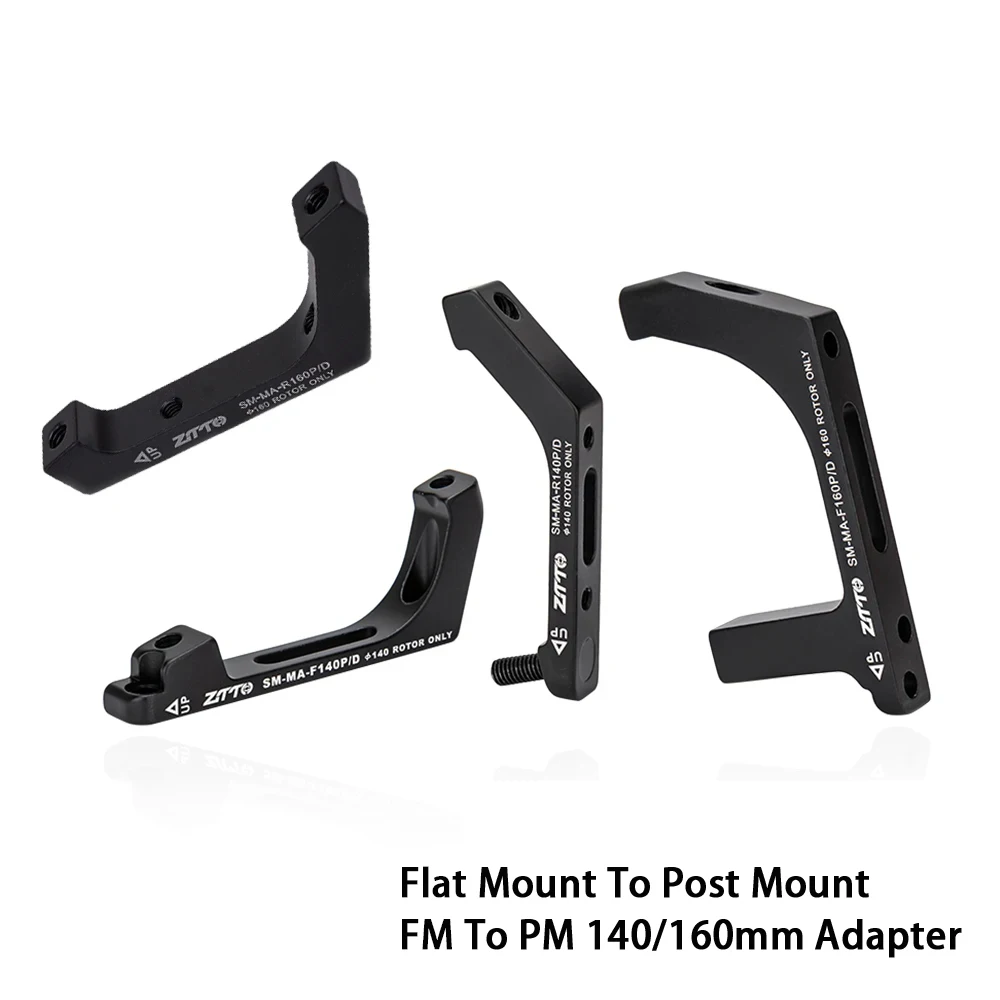

FM To PM

XMN-F140

For: Front wheel FM to PM, Use 140mm Disc Brake Rotor

XMN-F160

For: Front wheel FM to PM, Use 160mm Disc Brake Rotor

XMN-R140

For: Rear wheel FM to PM, Use 140mm Disc Brake Rotor

XMN-R160

For: Rear wheel FM to PM, Use 160mm Disc Brake Rotor
